Water Pressure System Accessories

Aqua Filta adsorbs dissolved impurities, freshening and cleansing water to make it natural tasting, sweet smelling and crystal clear. Screw on cartridge is replaced annually, or sooner if necessary, at half the cost of replacement filters. Over 200g of silver impregnated activated carbon. Beneficial mineral salts are retained. Ports accept fitting to either 1/2" (13mm) ID hose or 1/2" (13mm) screw-in fittings for polybutylene or copper plumbing. Initial flow capacity up to 3.7 GPM (14 LPM). Tough molded components give ample pressure capability, up to 60 psi (4.2 bar).


Jabsco Fresh water filter
Fitting Size Weight
1/2" (13mm) ID hose, 5/8" (15mm)
Hep20 and Acorn fittings,
5/8" (15mm) John Guest speedfit
and Whale system 15 fittings,
and 1/2" (13mm) BSP female threaded fittings.
10cm x 23cm x 14cm 0.5kg

Model Description Price
59000-1000 Aqua Filta 122.39 €
59100-0000 Replacement Filter Cartridge 72.21 €

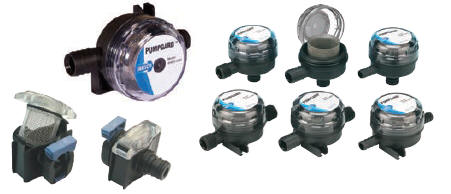

Pumpgard Strainer

Inlet strainer protects all electric diaphragm pumps.
Prevents unnecessary pump breakdowns caused by particles in the water.
Transparent housing allows instant inspection.
Quick, in-place cleaning of the 40# mesh stainless steel screen.


Jabso pump guard
Fitting Size
3/8",1/2",3/4"(10mm,13mm,19mm) ID hose 12cm x 7cm x 6cm

Model Description Price
46400-0000 3/4"(19mm) hose barb 37.75 €
46400-0002 1/2"(13mm) hose barb 37.75 €
46400-0003 3/8"(10mm) hose barb 41.78 €
46400-0004 1/2"(13mm)QEST port male 37.75 €
46400-0010 90 Degree Strainer 3/4"(19mm)
hose barb Inlet,
Quad port male outlet
37.75 €
46400-0012 90 Degree Strainer 1/2"(13mm)
hose barb Inlet,
Quad port male outlet
37.75 €
46400-0711 Large 90 Degree Strainer 23LPM Quad port female inlet, Quad port male outlet 44.00 €

Water Pressure Regulators

Inlet water regulators are designed to protect your boat water system plumbing and fixtures from the possible high pressure of municipal water systems. Regulation is controlled at all flow rates by a pre-set spring, and a removable strainer traps debris. Both in-line portable and permanent flush mount models are available in our line of diaphragm sealed regulators Limits inlet water pressure to 45 psi (3.1 bar). Maintains regulated pressure at various flow rates. Compact in-line model only 3" (77mm) long. Flush model has unique swivel elbow output. Manufactured of food-grade materials. Meets all applicable codes and approvals. Removable strainer on 44412 models protects plumbing.


Jabsco water pressure regulator
Fitting Size (cm) Weight
Flush connections for 3/4" (19mm)
GHT female inlet and 1/2" (13mm) 14 male pipe outlet.
In-line connections for 3/4" (19mm)
GHT female inlet and 3/4" (19mm) GHT male outlet.
Flush:
11.1x11.1x8.8
In-Line:
7.7x3.9

Model Description Price
44411-0045 In-line, white, 3/4" (19mm)
GHT male outlet
83.67 €
44411-1045 Flush, white, 90 Degrees 1/2" (13mm)
14 male pipe outlet
96.26 €
44411-2045 Flush, chrome, 90 Degrees 1/2" (13mm)
14 male pipe outlet
106.73 €
44412-1045 Flush, white, 1/2" (13mm)
female quad port, strainer included
96.26 €

Pressurized Accumulator Tanks

Improves all pressure controlled water systems. Our new compact 21oz (0.6L) Accumulator Tank fits into those tight areas and performs all of the same functions as our 1 Quart (1L) model, but in a smaller package. Smoother flow, quieter water systems. Internal rubber membrane eliminates maintenance and allows universal mounting. Better control of hot water temperatures. Simply fitted to new or existing systems. Longer pump life, lower battery drain. Snap-in port fittings.


Jabsco accumulator tank
Fitting Size Weight
1/2" (13mm) ID hose,
optional ports available
0.6L:12x18x11
1L: 12x34x11
0.6L: 0.45kg
1L: 0.7kg

Model Description Price
30573-0003 Pressurized 0.6L Accumulator Tank 88.83 €
30573-0000 Pressurized 1L Accumulator Tank 207.97 €
30649-1000 Snap-In Port Fittings for
1/2" (13mm) female threads
10.50 €

Larger Pressurized Accumulator Tanks

Smooth flow from faucets and showers, reduce pump cycling, eliminate pulsations and water hammer. Can be mounted vertically or horizontally. Water is totally separated from air chamber by a rubber bladder. All models include mounting brackets 18810-0000 (US supply). 2 gallon tank NSF-61 listed.


Jabsco Large Accumulator tank
Shut-off Pressure Fitting Size (cm) Weight
100 psi (6.9 bar) maximum working pressure,
pre-pressurized to 20 psi (1.4 bar)
3/4" (19mm) NPT male thread 18810-0000: 32x20
23240-2000: 22x33x20

Model Description Price
23240-2000 8L Tank 288.71 €
